Elite
- Straight line / 3 Corners / 4&6 Corners / Special
- World Best HIGH-END Folding Carton Gluer MODEL
- World Best High-end folding carton gluer Model "ELITE"
- The most sold High-end flagship model of ACE Machinery & SIGNATURE
- Armed with limitless expandability and versatility using options
- The ELITE which is folding carton gluer suitable for
fast production of any complicated cartons
Related Machines that can be organized with ELITE
SPECIFICATIONS
-

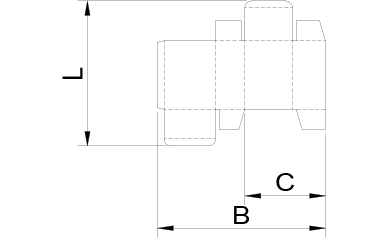

1. STRAIGHT LINE CARTONS
TYPE 90 110 135 B(mm) 140~900 140~1100 140~1350 L(mm) 65~900 65~900 65~1000 C(mm) 65~435 65~540 65~660 -
2. CRASH-LOCK BOTTOM CARTONS
TYPE 90 110 135 B(mm) 170~875 170~1075 170~1325 L(mm) 120~900 120~900 120~1000 C(mm) 80~435 80~530 80~645 -
3. 4-CORNER COLLAPSIBLE BOXES
TYPE 90 110 135 B(mm) 150~800 150~1000 150~1250 L(mm) 150~800 150~800 150~800 H(mm) 30~150 30~150 30~150 -
4. 6-CORNER COLLAPSIBLE BOXES
TYPE 90 110 135 B(mm) 250~850 250~1000 250~1250 L(mm) 185~800 185~800 185~800 H(mm) 30~150 30~150 30~150 -
5. FOLDING BOX BOARD(gm2)
TYPE 90 110 135 Folding Cartons 200~800 200~800 200~800 Lock Bottom Cartons 250~800 250~800 250~800 Collapsible Boxes 250~800 250~800 250~800 -
6. CORRUGATED BOARD
TYPE 90 110 135 Folding Cartons E,B flute E,B flute E,B flute Lock Bottom Cartons E,B flute E,B flute E,B flute Collapsible Boxes E flute E flute E flute -
7. LENGTH (M)
90 110 135 17.1 17.1 18.4 -
8. WEIGHT (T)
90 110 135 11 12 13.5 -
9. TOTAL CONNECTED LOAD (KVA)
90 110 135 67 67 78
OPTIONS DETAIL
-
Carton Aligner Section
It aligns the blank that was fed from the feeder at any speed / The Carton Alignment section is an essential option for accurate folding, gluing and braille works
-
Turning Station (Gyro)
It turns blanks up to 180° as well as 90° so that operators can produce difficult boxes very easily and speedy with only one running machine. It is mandatory for production of cartons like beer carrier cartons
-
Nick Breaker
If you are working on a carton that requires a nick-tearing process like a beer carrier. It is mandatory device that get rid of the carton's nicks without any problems, scratches in high speed after feeder section
-
Fastfold
FAST FOLD is a device that folds the flap of the folding line naturally by using the wave of the vacuum, not the hook-folding method when produce the cratons. The conventional hooking method is limited by the inertia of the spring, which makes it impossible to increase the speed of the folding carton gluer. However, this method using wave is not affected by the inertia and gives the users productivity up to 70,000 times per hour without restriction of speed.
-
Auto-jog
The setting time can be significantly shortened by automatic setting of carriers. It eliminates the stress and time consuming of settings and it has unlimited data space to input, store and recall setting values regardless of the size and number of workpieces.
-
4/6CS, 8CS Back Folding
Ace Machinery Co., Ltd. Developed with its own technology, 4/6 C/S and 8C/S servo back folding device. 50,000 sheets per hour can be produced through this device and German servo motor and drive. (World's first) / Simple operation is available just by inputting distance, angle, speed
-
Glue Supply Device
It does not require frequent replacement of the glue due to large storage, and the sensor does not cause a no-glue phenomenon because of the correct amount of glue supply. This reduces work time and increases productivity. You can use it cleanly without worrying about overflowing because the pump automatically feeds the glue without putting the glue directly.
-
Spanker
It is a device that maintains the consistency of the quality of the loading and the alignment of the blank by correcting disorder and scattering of folded cartons when produce thick blanks
-
Ejector
Reducing the defect rate of the blank is the key to production efficiency. Ace Machinery Co., Ltd. is able to detect the type and cause of defects without wasting time by detecting defects differently from other companies through ACE's unique technology and patented ejector. Do not bend your waist or stop the machine to check for any further defects.
